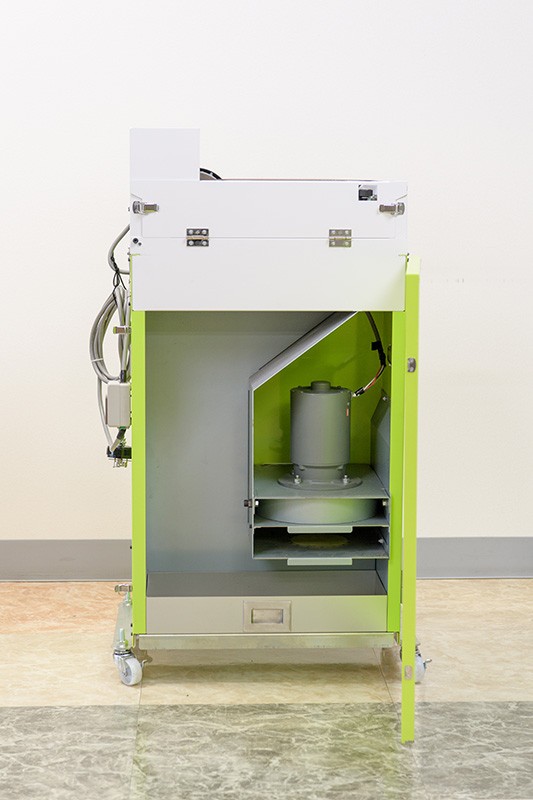

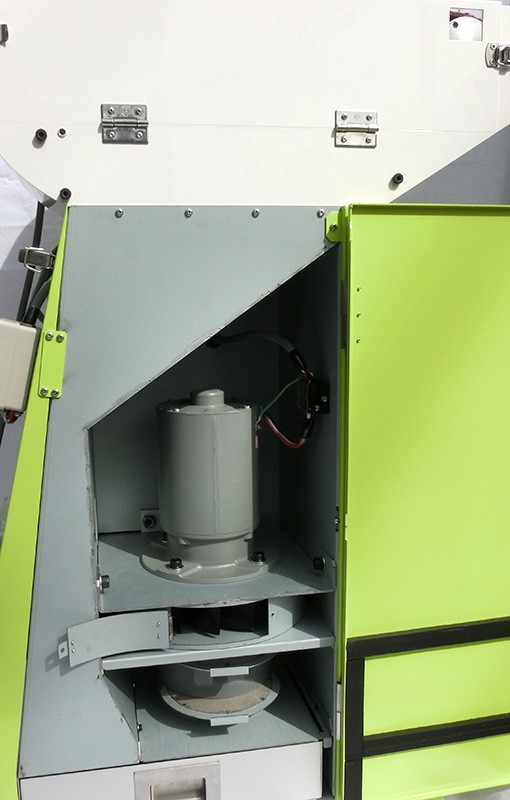

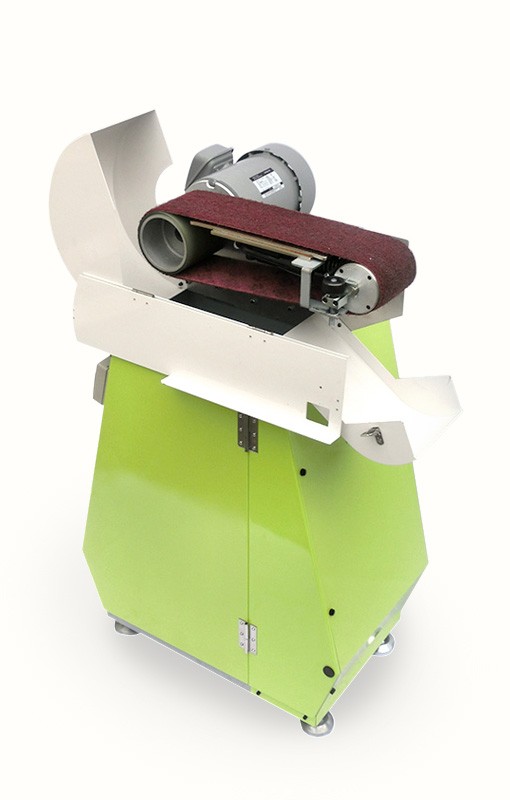

We have created and developed products that are environmentally friendly and friendly to workers. By developing a fan derived from the theory of fluid mechanics, we succeeded in suppressing operating noise to 68 dB. A belt grinder with a dust collection function and low noise.

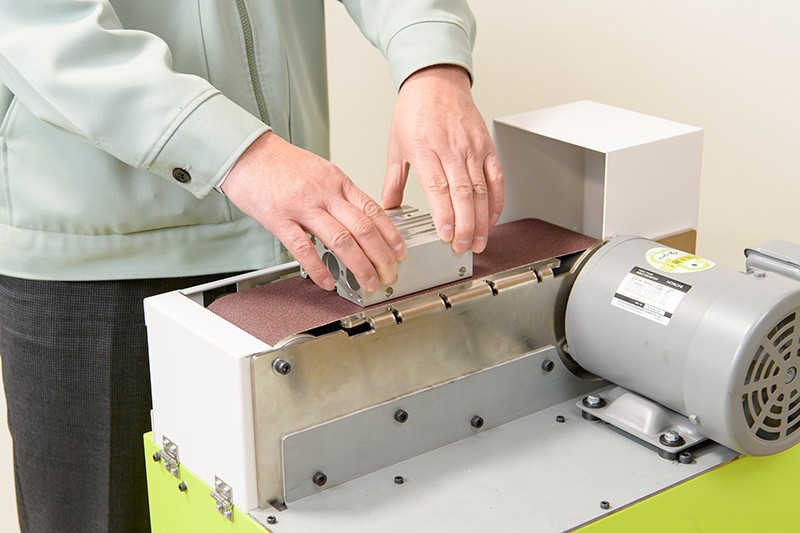

The belt can be replaced with a commercial product.
The sound will vary slightly depending on the type of belt.
Please scroll sideways to see| Quper | Quper S | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Name | QI-68a | QI-68b | QⅡ-68 | QsI-68a | QsI-68b | ||||||
| Type | Standard type | Vertical type | Standard type | ||||||||
| Division | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | 50Hz | 60Hz | |
| Belt grinder part |
Belt dimensions (mm) | width100×length915 | width100×length915 | ||||||||
| Belt speed (min-1) | 1410 | 1690 | 1440 | 1735 | 1440 | 1735 | 1410 | 1690 | 1440 | 1735 | |
| Output(KW) | 0.4 | 0.75 | 0.75 | 0.4 | 0.75 | ||||||
| Current consumption(A) | 2.3 | 2.0 | 3.7 | 3.4 | 3.7 | 3.4 | 2.3 | 2.0 | 3.7 | 3.4 | |
| Dust machine |
rotation speed(min-1) |
1400 | 1680 | 1400 | 1680 | 1400 | 1680 | 1400 | 1680 | 1400 | 1680 |
| Output(KW) | 0.2 | 0.2 | |||||||||
| Current consumption(A) | 1.05 | 0.98 | 1.05 | 0.98 | 1.05 | 0.98 | 1.05 | 0.98 | 1.05 | 0.98 | |
| Power supply/voltage(V) | 4P200 | 4P200 | |||||||||
|
Main power cable(m) |
3 | 3 | |||||||||
| Size(mm) | W570×D370×H1000 | W570×D370×H1250 | W507×D416×H956 | ||||||||
| Mass(kq) | About60 | About65 | About69 | About50 | About55 | ||||||
※To reduce CO2, shipping is done in simple packaging, so please cooperate.
